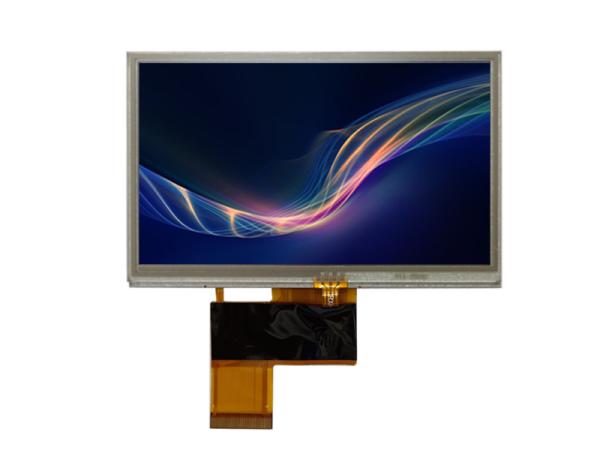

General Specifications
| Feature | Spec |
Characteristics | Size | 4 3 inch |
| Resolution | 480(horizontal)*272(Vertical) |
| Interface | RGB-24bit |
| Connect type | Connector |
| Display Colors | 16.7M |
| Technology type | a-Si |
| Pixel pitch (mm) | 0.198*0.198 |
| Pixel Configuration | R.G.B-Stripe |
| Display Mode | Normally Black |
| LCD Driver IC | TBD |
| Viewing Direction | Full view |
Mechanical | LCM (W x H x D) (mm) | 105.50*67.20*2.95 |
| Active Area(mm) | 95.04 x53.86 |
| Weight (g) | TBD |
| LED Numbers | 16 LEDs |
Note 1: Requirements on Environmental Protection: RoHs
Note 2: LCM weight tolerance: +/- 5%
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
