1920*1920 Tft LCD Display BOE 22 Inch For Industry

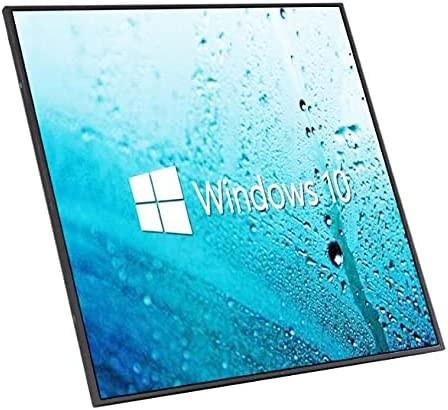

BOE 22 inch 1920*1920 LCD display for industrial application

DV220X2M-NV0 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 22 inch diagonally measured active area with 2K resolutions (1920 horizontal by 1920 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features
LVDS Interface with 4 pixel / clock (Jeida Format)
High-speed response
0.5t Glass
8-bit color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS/Halogen Free
Gamma Correction
Reverse type

Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

General Specification

KADI Display Technology is one of the main agents of AUO /BOE / Innolux TFT- LCD module in China mainland, founded in 2015, the products vary from 7.0 to 21.5 inches, which include industrial, medical, automotive  and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.

We can supply total set of display solution:
TFT LCD  + Touch + Optical bonding+ Driver board + Cables.
