1024*768 Color BOE TFT Monitor 8 Inch Wled Backlight Display For
Industry
GT080X0M-N12-1QP0
BOE 8.0 inch 1024*768 display for industrial application

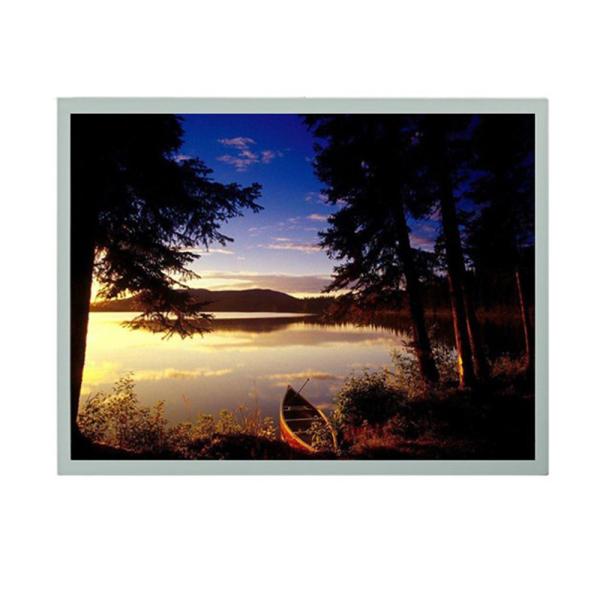

GT080X0M-N12-1QP0 is an 8.0-inch a-Si TFT-LCD liquid crystal module
product launched by BOE. It is equipped with WLED backlight, no
backlight driver, and no touch. It's general features are
summarized following: White LED Backlight, Up/Down, Left/Right Flip
Display, Matte Surface. Based on its characteristics, Panelook
recommend that this model be used in Industrial and other products.
In terms of backlight, this product uses a 3S11P WLED edge-type
light source, excluding backlight driver. GT080X0M-N12-1QP0 adopts
LVDS (1 ch, 8-bit) signal interface, a total of 40 pins, connected
by FPC, the drive voltage is 3.3/11.62/23/-7.78V
(Typ.)(VDD/AVDD/VGH /VGL). Its typical vertical refresh rate Fv is
60Hz.
