Brand Name : | BOE |
Model Number : | DV150X0M-N10 |
Certification : | ISO9001 |
Payment Terms : | T/T |
Delivery Time : | 3-7work days |
Feature:
LCM General Information
Feature | Spec | |
Characteristics | Size | 15 inch |
Resolution | 1024(Horizontal)*768(Vertical) | |
Interface | LVDS | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.099(H)×0.297(V) | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally Black | |
Driver IC | OTA7290B | |
CTP Driver IC | - | |
Viewing Direction | full view | |
Mechanical | LCM (W x H x D) (mm) | 326.5(W)*253.5(H)*9.7 (D) |
Active Area(mm) | 304.128(H)x 228.096 (V) | |
With /Without TSP | Without CTP | |
Weight (g) | 850 | |
LED Numbers | 48 LEDs |

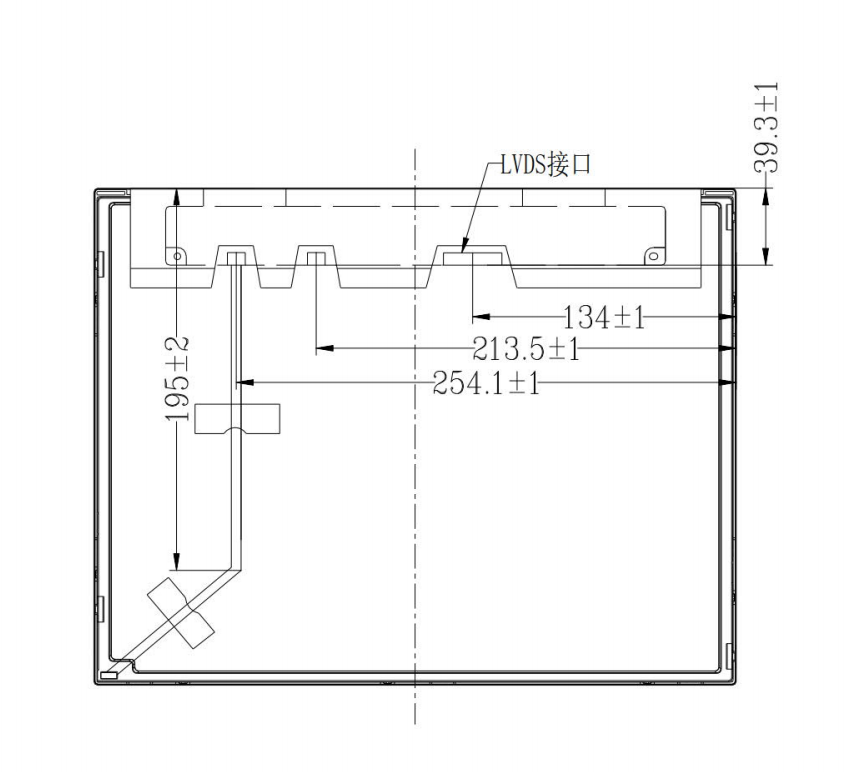

Drawing
Why choose us?
Core team from Tianma, Innolux, TFT-LCD and Touch panel field with more than 20 years of experience.
1. Focus on industrial/medical/automotive, products with long lifetime, long-term supply features.
2. Strict quality management, passed ISO9001/ IATF16949/ ISO14001/ ISO13485 certification,0.5‰ after-sales repair rate.
3. One-stop solution provider, support customize TFT-LCD/ Touch Panel with optical bonding/ Signal conver board products,we display your ideas.
![]() |
