10.1 Inch Organic Light Emitting Diode Display BOE 1280*800 For
Industry
EV101WXM-N80

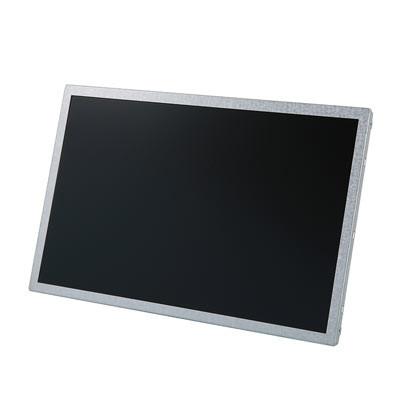

BOE 10.1 inch 1280*800 LCD display for industrial application
Ev101wxm-n80 is a 10.1-inch LCD module product launched by BOE
Technology Group Co.,Ltd. (BOE) using A-SI TFT-LCD Technology. It
is equipped with WLED backlight, no backlight drive and no touch.
The EV101WXM-N80 displays a resolution of 1280(RGB)×800 (WXGA), an
aspect ratio of 16:10 (WIDTH: height), and pixels arranged in RGB
vertical strips, according to the product specification of Rev.P3
released by BOE on March 14, 2019. Its display area size is
216.96×135.6 (width × height) mm, visual size is 219.4×138.0 (width
× height) mm, external size is 233.2×152.9 (width ×
height)×10.4(thickness) mm, product net weight 505g (Typ.).
Backlight This product uses a WLED side entry light source with a
service life of 30K hours without backlight drive. Ev101wxm-n80
uses LVDS (1 CH, 8-bit) signal interface, a total of 20 pins, uses
terminal connection, drive screen voltage is 3.3V (Typ.). Its
typical vertical refresh rate Fv is 60Hz. It operates at -20 °C to
70°C and stores at -30 °C to 80°C. This model is recommended for
use in medical imaging due to its white LED backlight and other
features.
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
