1280*1024 BOE TFT LCD Oled Laptop Screen A-SI 19.0 Inch Wled
Backlight
ZV190E0M-N10

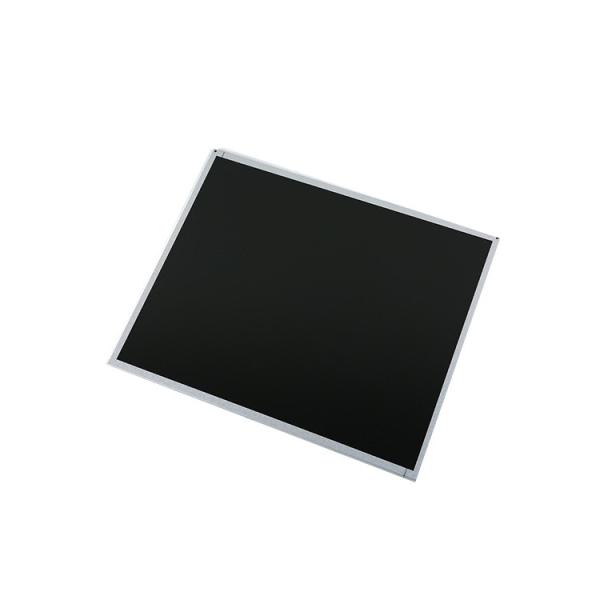

BOE 19 inch 1280*1024 LCD display for laptop application
BOE launched zV190E0M-N10 is a 19.0 inch LCD module product using
A-SI TFT-LCD technology. It is equipped with WLED backlight,
including LED driver backlight drive, no touch. The typical
features are summarized as follows: wide color gambit, sRGB, white
LED backlight, life span of more than 50,000 hours, including LED
driver, terminal full installation. It operates at -20 to 70°C,
stores at -20 to 75°C, and has a vibration resistance of 1.5g
(14.7m /s²). According to the product specification issued by BOE
on April 19, 2021, ZV190E0M-N10 has a display resolution of
1280(RGB)×1024 (SXGA), an aspect ratio of 5:4 (WIDTH: height), and
pixels arranged in RGB vertical strips. Its display area size is
374.784×299.827 (width × height) mm, visual size is 378.8×303
(width × height) mm, external size is
396(width)×324(height)×13.38(thickness) mm, product net weight is
1.80Kgs (Typ.). In terms of backlighting, this product uses a WLED
side entry light source with a life of 50K hours, including LED
driver. Zv190e0m-n10 uses LVDS (2 CH, 8-bit) signal interface, a
total of 30 pins, uses terminal connection, drive voltage is 5.0V
(Typ.). Its typical vertical refresh rate Fv is 60Hz.
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
