1280*800 BOE 10.1 Inch TFT LCD Oled Industrial Organic Light
Emitting

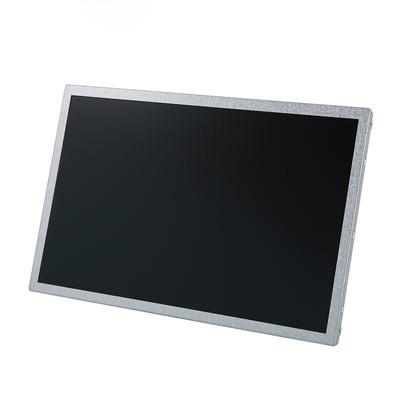

GV101WXM-N85
BOE 10.1inch 1280*800 LCD display for industrial application
The GV101WXM-N85 displays a resolution of 1280(RGB)×800 (WXGA), an
aspect ratio of 16:10 (WIDTH: height), and the pixels are arranged
in RGB vertical strips, according to the product specification with
version No. Rev.0 released by BOE on October 10, 2020. It has a
display area size of 216.96×135.6 (W × H) mm, an exterior size of
228.2×148.85 (W × H)×4.9(thick) mm, a surface treatment of Haze
25%, and a product net weight of 250g (Max.). For backlighting,
this product uses a WLED side entry light source (bottom) with a
life of 15K hours, including LED driver. Gv101wxm-n85 adopts LVDS
(1 CH, 8-bit) signal interface, a total of 40 pins, adopts terminal
connection, drive voltage is 3.3V (Typ.). Its typical vertical
refresh rate Fv is 60Hz. It operates at -20 to 70°C and is stored
at -20 to 70°C. Based on its white LED backlight, LED driver,
terminal flip, surface fog and other features, this model is
recommended for tablet computers.
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
