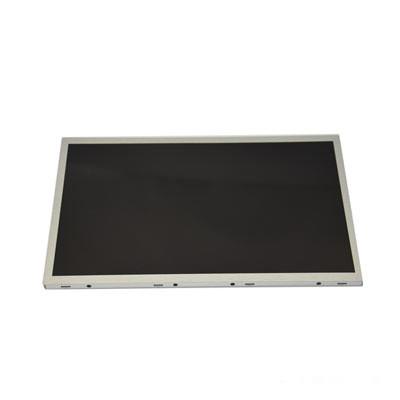

INNOLUX TFT Color Liquid Crystal Display Monitor 12.1 Inch 1280x800
G121I1-L01
INNOLUX 12.1 inch 1280*800 display for industrial application
G121i1-l01 display resolution is 1280(RGB)×800 (WXGA), width to
height ratio is 16:10 (width: height), pixels are arranged in RGB
vertical stripes, according to the product specification for Ver2.5
released by Innolux on September 24, 2014. Its display area size is
261.12×163.2 (width × height) mm, visual size is 265.10×167.20
(width × height) mm, and its external size is 278×184 (width ×
height)×10.5(thickness) mm. The surface treatment is fog surface,
Hard coating (3H), Product net weight 455g (Typ.). In terms of
backlight, this product adopts 9S3P WLED side entry light source
with a service life of 50K hours, including LED driver. G121i1-l01
adopts LVDS (1 CH, 6/8-bit) signal interface, a total of 30 pins,
adopts terminal connection, drive screen voltage is 3.3V (Typ.).
Its typical vertical refresh rate Fv is 60Hz. It operates at -10 to
70°C, stores at -20 to 80°C, and has a vibration resistance of 1.0g
(9.8m /s²). It is recommended for industrial use because it is
backlit, has a white LED backlight, has a life of more than 50,000
hours, includes LED drivers, an optional 6/8 bit grey scale, foggy
surfaces, and Replaceable leds.
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
