Industrial INNOLUX LCD Flat Panel Monitor 1024x768 12.1 Inch Hard
Coating
G121XCE-L02

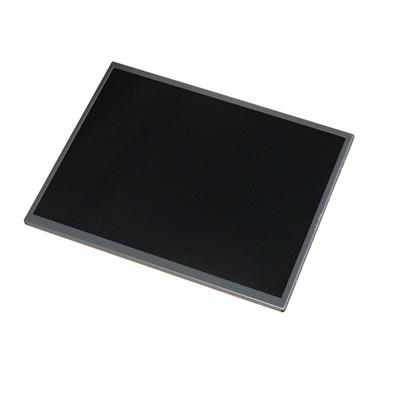

INNOLUX 12.1 inch 1024*768 display
G121xce-l02 is a 12.1 inch LIQUID crystal module of Innolux
optoelectronics Co., LTD. (Innolux). It adopts A-Si TFT-LCD
technology. It is equipped with WLED backlight, including LED
driver backlight drive, no touch. G121xce-l02 displays a resolution
of 1024(RGB)×768 (XGA), a width to height ratio of 4:3 (width:
height), and the pixels are arranged in RGB vertical stripes,
according to the product specification for Ver3.2 released by
Innolux on April 11, 2019. Its display area size is 245.76×184.32
(width × height) mm, visual size is 249.0×187.5 (width × height)
mm, and its external size is 260.5×204 (width ×
height)×8.9(thickness) mm. The surface treatment is fog surface,
Hard coating (3H), Product net weight 490/510g (Typ./Max.). For
backlighting, this product uses a WLED side entry light source with
a life of 30K hours, including LED driver. G121xce-l02 uses LVDS (1
CH, 6/8-bit) signal interface, a total of 20 pins, uses terminal
connection, drive screen voltage is 3.3V (Typ.). Its typical
vertical refresh rate Fv is 60Hz. It operates at -30 °C to 70°C,
stores at -40 °C to 80°C, and has a vibration resistance of 1.5g
(14.7m /s²).
Actual Product Applications
This model is recommended for industrial use due to its wide
temperature, white LED backlight, including LED driver, terminal
mounting, up/down, left/right flip display, 6/8 bit grey scale
optional, and fog surface.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
