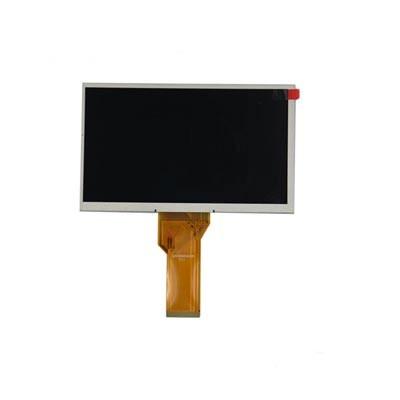

7.0 Inch Full Color Portable LCD Monitor INNOLUX Industrial TFT
800x480
AT070TN94
INNOLUX 7 inch 800*480 display for industrial application
AT070TN94 displays a resolution of 800(RGB)×480 (WVGA), width to
height ratio of 16:9 (width: height), pixels arranged in RGB
vertical strips. Its display area size is 154.08×85.92 (width ×
height) mm, visual size is 156.7×89.1 (width × height) mm,
appearance size is 164.9×100 (width × height)×6(thickness) mm,
surface treatment is fog surface, product net weight is 154G
(Typ.). In terms of backlight, this product adopts 3S9P WLED side
entry light source, which has a service life of 20K hours without
backlight drive. AT070TN94 adopts Parallel RGB (1 CH, 6/8-bit)
signal interface, a total of 50 pins, FPC connection, drive screen
voltage is 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL). It
operates at -30 °C to 85°C, stores at -30 °C to 85°C, and has a
vibration resistance of 1.5g (14.7m /s²). Based on its width and
temperature, white LED backlight, up/down, left/right flip display,
6/8 bit gray level optional, surface fog, DE/SYNC Mode selectable;
2 in 1 FPC and other features,
Actual Product Applications
this model is recommended for vehicle display.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
