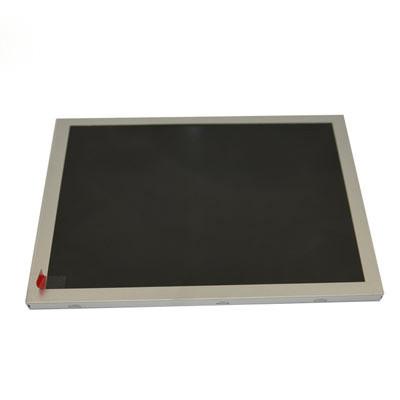

8.0 Inch INNOLUX TFT Color Monitor 800*600 Digital RGB Industrial
Flat Panel
EJ080NA-05B
INNOLUX 8 inch 800*600 display for industrial application
The operating temperature of the product is -20 ~ 70°C, and the
storage temperature is -30 ~ 80°C. Its typical feature is
summarized as: White LED backlight, up/down, left/right flip
display, 6/8 bit gray level optional, surface fog, 2 in 1 FPC,
DE/SYNC Mode Selectable. Based on its feature screen library, this
model is recommended for digital photo frames, portable DVD and
other products.The EJ080NA-05B displays a resolution of
800(RGB)×600 (SVGA), an aspect ratio of 4:3 (width: height), and
the pixels are arranged in RGB vertical stripes, according to
Innolux's product specification released on September 26, 2017 with
version number Final Ver.04. Its display area size is
162(width)×121.5(height) mm, the external size is
183(width)×141(height)×5.9(thickness) mm, the visual size is
164.8(width)×124.3(height) mm, the surface treatment is fog
surface, the product net weight is 241g (Typ.). In terms of
backlight, this product adopts 3S9P WLED side entry light source,
which has a service life of 20K hours without backlight drive. The
EJ080NA-05B adopts Parallel RGB (1 CH, 6/8-bit) signal interface, a
total of 50 pins, using FPC connection, drive screen voltage is
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL). Its typical vertical
refresh rate Fv is 60Hz.
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
FAQ
- Q: Can we customize the CTP? What cost will be included?
- A: Yes, We have 2 CTP bonding lines, support customize cover glass
and do optical bonding.We combine touch screen technology with an
LCD display module, which greatly saves your cost. One-stop service
will be one of the reasons why choose us.
- Q: Products are in stock? How long can you deliver?
- A: Samples available in stock will be sent within 3 days; Small
batch delivery takes 2-3 weeks; Large batch delivery takes 5-6
weeks
- Q: How to control the quality of products?
- A: The company has a professional quality team, and all products
are 100% inspected before shipment.
- Q: How long is the warranty and service of the product?
- A: Generally the warranty period is one year.
- Q: Can you provide product drawings and test reports?
- A: According to customer needs, our company can provide
product-related information and test reports.
