    IPS KADI 7 Inch Color TFT LCD Display RGB 280x1424 Dots MIPI Interface

    Ask Lasest Price
    Brand Name : KADI
    Model Number : KD070HWX93HN
    Certification : ISO9001
    Payment Terms : T/T
    Delivery Time : 3-7work days
    • Product Details
    • Company Profile

    IPS KADI 7 Inch Color TFT LCD Display RGB 280x1424 Dots MIPI Interface

    Feature:

    • Bar type TFT LCD
    • -20~60℃ operating tempature option



    LCM General Information


    Feature

    Spec

    Characteristics

    Size

    7 inch

    Resolution

    280(Horizontal)*1424(Vertical)

    Interface

    MIPI

    Connect type

    Connector

    Color Depth

    16.7M

    Technology type

    a-Si

    Display Spec. Pixel pitch (mm)

    0.12(H)×0.12(V)

    Pixel Configuration

    R.G.B. Vertical Stripe

    Display Mode

    Normally Black

    Driver IC

    OTA7290B

    CTP Driver IC

    -

    Viewing Direction

    full view

    Mechanical

    LCM (W x H x D) (mm)

    38.20(W)*186.62(H)*3.50 (D)

    Active Area(mm)

    33.60(H)x 170.88(V)

    With /Without TSP

    Without CTP

    Weight (g)

    TBD

    LED Numbers

    16 LEDs

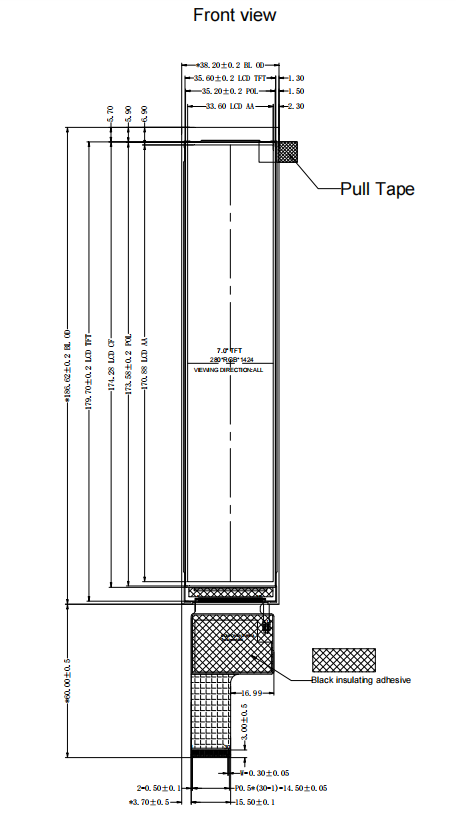

    Drawing




    Why choose us?


    Core team from Tianma, Innolux, TFT-LCD and Touch panel field with more than 20 years of experience.


    1. Focus on industrial/medical/automotive, products with long lifetime, long-term supply features.


    2. Strict quality management, passed ISO9001/ IATF16949/ ISO14001/ ISO13485 certification,0.5‰ after-sales repair rate.


    3. One-stop solution provider, support customize TFT-LCD/ Touch Panel with optical bonding/ Signal conver board products,we display your ideas.
