Feature:

• High-performance processor
  AIoT3568 adopts RK3568 chip, quad-core Cortex-A55 architecture, main frequency up to 2.0GHz, 22nm process,
  equipped with Android 11 system, strong performance and low power consumption, making back-end data
  processing more stable and efficient.
• Independent NPU, AI reasoning capability
  AIoT3568 has built-in neural network computing unit, independent NPU, supports 1Tops computing power, has
  excellent AI computing and reasoning capabilities, M.2 interface supports computing power stick expansion, and
  can be widely used in face recognition, face payment, edge computing, Speech recognition analysis and security
  field.
• Multi-display interface, support three-screen different display
  AIoT3568 adopts 4-core Mali-G52 2EE, supports 4K H.264 decoding, has LVDS, eDP, HDMI, MIPI DSI
  multiple display interfaces, HDMI supports up to ultra-high-definition 4K display; suitable for dual-screen cash
  registers , dual-screen self-service retail and other terminals; at the same time, it supports MIPI CSI input interface,
  and can be connected to a variety of MIPI camera devices without debugging.
• Rich peripheral interface
  AIoT3568 has 6 USB 2.0 and 1 USB 3.0 interfaces, which can expand high-speed peripherals; 1 I2C, 1 I2S
  (switchable to 5 GPIO ports) interfaces can be connected to the microphone array for speech recognition, 5 serial
  ports (TTL*1 & RS485/TTL*1 & RS232/TTL*2 & CAN*1) can support a variety of industry mainstream
  peripherals access, storage expansion worry-free.
• Support high-speed 5G interface

  AIoT3568 has M.2 interface, supports 5G Internet access module; 1 RJ45 interface, supports 100M adaptive

  network; supports 2.4G (Wi-Fi 5G optional) Wi-Fi and Bluetooth 4.2; supports mainstream PCI-E 4G Internet

  access module.

LCM General Information

Touch Panel Information

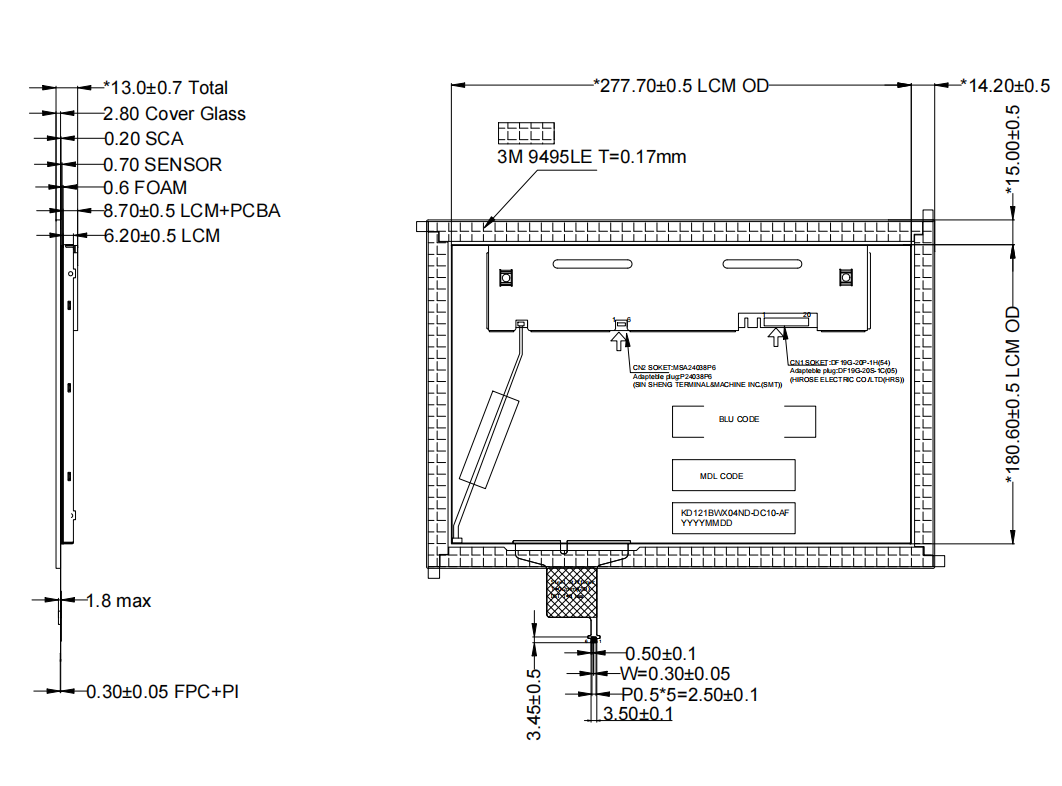

Drawing

Why choose us?

Core team from Tianma, Innolux, TFT-LCD and Touch panel field with more than 20 years of experience.

1. Focus on industrial/medical/automotive, products with long lifetime, long-term supply features.

2. Strict quality management, passed ISO9001/ IATF16949/ ISO14001/ ISO13485 certification,0.5‰ after-sales repair rate.

3. One-stop solution provider, support customize TFT-LCD/ Touch Panel with optical bonding/ Signal conver board products,we display your ideas.

KADI Display Technology is one of the main agents of AUO /BOE / Innolux TFT- LCD module in China mainland, founded in 2015, the products vary from 7.0 to 21.5 inches, which include industrial, medical, automotive  and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.

We can supply total set of display solution:
TFT LCD  + Touch + Optical bonding+ Driver board + Cables.

Stock for sale
Long-time supply
No MOQ
Fulll range solution

Our features are:
1. Original quality guarantee;
2. Superior After-Sale service;
3. The most competitive prices;
4. Small order quantity accepted;
5. 12 months of warranty;
6. Experienced staff can help to solve problem anytime.

With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
