10.4 Inch Industrial CTP for 1024(RGB)×768 LVDS InterfaceLCD Display 500nits
| Feature | Spec |
| Characteristics | Size | 10.4 inch |
| Resolution | 1024(Horizontal)*768(Vertical) |
| Display Type | Transmissive, a-Si |
| Interface | LVDS |
| Color Numbers | 256K/16.7M |
| Color Arrangement | RGB Stripe |
| Pixel pitch (mm) | 0.2055 (H)×0.2055 (V) |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Response Time (ms) | ≤35 |
| Panel power consumption | Max:1.4W @white pattern |
| Viewing Direction | CR≧10 @ R/L/U/D(80°/80°/80°/80°) (Min.) |

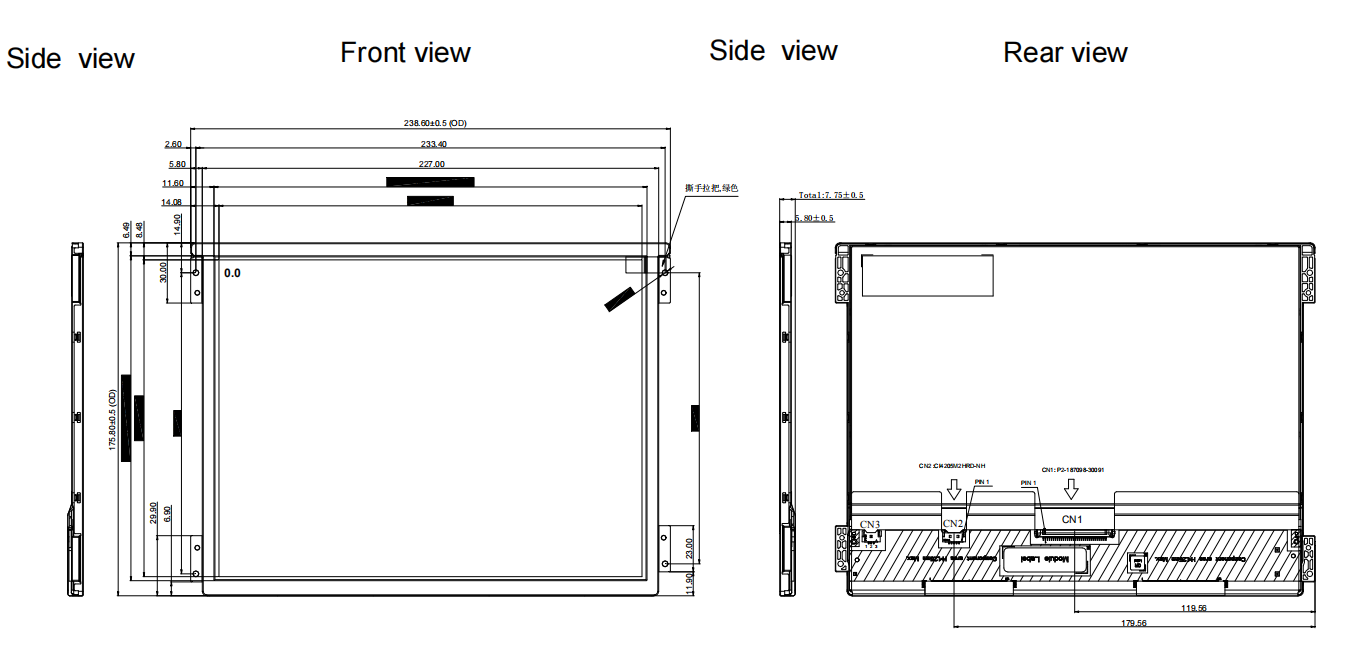

| Mechanical | LCM (W x H x D) (mm) | 238.6 (H) x 175.8 (V) x 7.75 (D) |
| Active Area(mm) | 210.43 (H) x 157.82 (V) |
| With /Without TP | Without TP |
| Weight (g) | TBD |
| LED Numbers | 32 LEDs |
10.4 inch Industrial display touch
Actual Product Applications
With the rapid development of the medical industry, the medical
level is getting higher and higher, and medical LCD medical
terminals appear to enhance hospital management efficiency, reduce
medical errors, reduce the labor intensity of medical staff, and
improve patient satisfaction. As the core part of the medical
terminal, the medical LCD screen bears the main functions and
directly affects its normal operation and performance.
Why choose US?
1. Factory Direct Sales
We can promise the quality ourselves and the price is absolutely
advantage.
2. Professional Technical Support
Our technical team can solve the problems encountered in the use
process for you.
3. Support OEM/ODM Customization
We can Personalized customization for customers
4. Professional Sales Team
Our sales team will provide you with one-to-one service and solve
all your after-sales problems.
5. To Be Your Reliable Supplier and Agent in Shenzhen, China
We hope to be your agent in China. In addition to our products, we
can help you purchase the products you need and handle the freight
together, so as to save your time and transportation cost.
